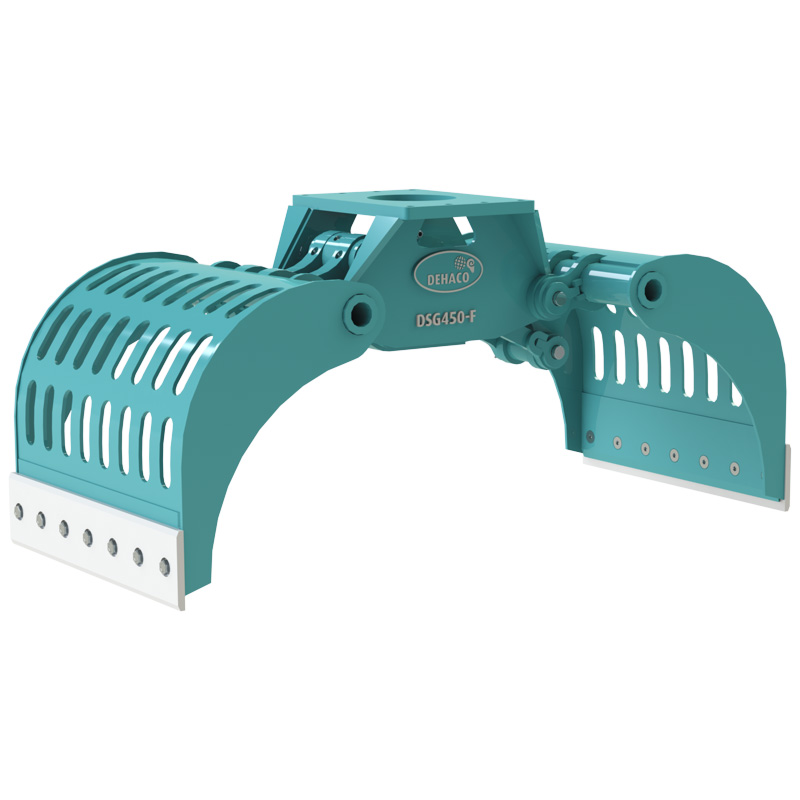

DSG450-F Demolition and sorting grab without rotation 4 – 6 ton

Mašinos svoris

4 – 6 t.

Svoris

290 kg

Hidraulikos srautas

40 l/min

Slėgis

300 bar

Cilindrų kiekis

1

Auštis atidaryto

705 mm

Plotis atidaryto

1.500 mm

Uždaryto aukštis

875 mm

Plotis uždaryto

890 mm

Tūris

150 l

Užsidarymo jėga

23 kN

Aprašymas

The DSG demolition and sorting grabs from Dehaco are well known for being very reliable and powerful machines. The grabs can be used for a wide range of work applications. This brochure will give you an idea of the applications, features and (technical) specifications of these machines.

Dehaco’s hydraulic demolition and sorting grabs can be used for a wide range of purposes, such as sorting, demolition and clearing a variety of materials, moving wood or construction materials.

The grabs are light, yet large in volume and highly manoeuvrable. The stationary cylinder(s) prevent the hydraulic hoses from moving, limiting damage to a minimum.

Papildoma informacija

Mašinos svoris

4 – 6 t.

Svoris

290 kg

Hidraulikos srautas

40 l/min

Slėgis

300 bar

Cilindrų kiekis

1

Auštis atidaryto

705 mm

Plotis atidaryto

1.500 mm

Uždaryto aukštis

875 mm

Plotis uždaryto

890 mm

Tūris

150 l

Užsidarymo jėga

23 kN
